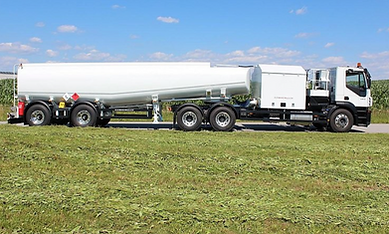

Aluminum tank body for 2A truck

Product benefits

​

• Sophisticated design with perfect functionality

• Flexible handling of special customer requests

• Highest product purity thanks to optimum drainage based on unique double-wedge construction

• Aluminium or stainless steel chassis

• Installation of axles from well-known manufacturers such as SAF or BPW

• OPTIONAL: Choice of aluminium or stainless steel bumper

• OPTIONAL: High-set lights integrated in dome tank

• OPTIONAL: Separate plastic box for fire extinguisher

​

GENERAL



Vehicle designation acc. to 9.1.1.2 ADR: FL Tank code acc. to 4.3.4.1 ADR: LGBF
Special provisions acc. to 6.8.4 ADR: TE 7, TE 19
For transporting JET A-1

​

CHASSIS AND ATTACHMENTS



Swivel rocker with cable bushing on fifth-wheel coupling
Stainless steel chassis frame
Single wheel plastic mudguards with mud flaps and spray-suppression system Side impact protection, foldable Aluminium underride protection

Axles Air suspension unit with low-maintenance axles and disc brakes,
2 x 10 t rigid, wheelbase 2,050 mm

Suspension
Air suspension

Tyres
4 x 425/65 R 22.5, 165 K, manufacturer as per factory specifications 4 aluminium wheels, 11.75 x
22.5, polished outside, 10-hole, without rim offset
